Combined Drawing Machine

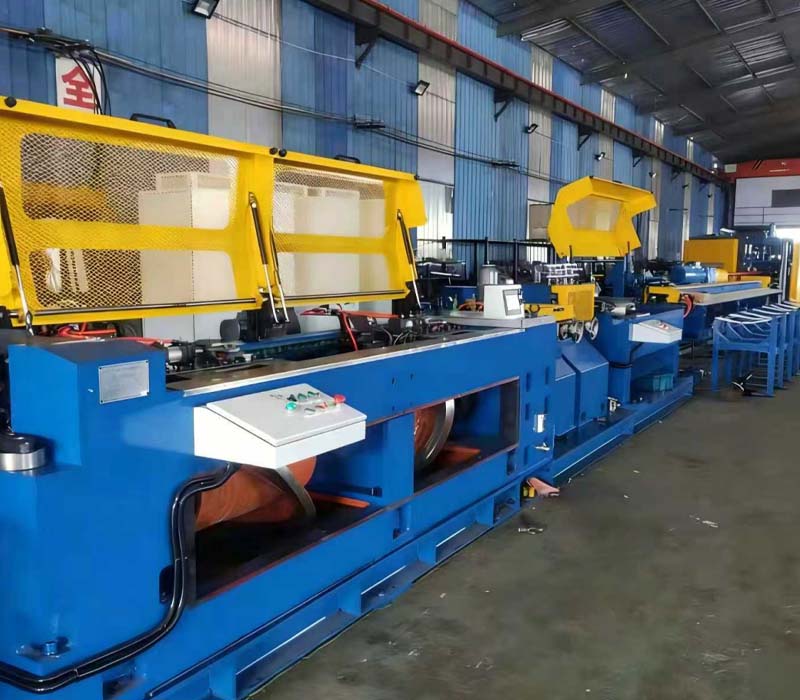

A combined drawing machine is an automated metal finishing system that integrates multiple cold-working processes. Its primary function is to process coiled metal raw materials in a single pass, transforming them into rods, tubes, and profiles characterized by high precision, superior surface finish, and exceptional straightness.
Uncoiling and Pre-straightening: The coiled raw material is unwound and preliminarily straightened to relieve internal stresses.
Continuous Drawing and Forming: Through a multi-die continuous drawing process, the material's cross-section is reduced while its length is elongated, achieving single-pass forming.
Precision Straightening: A secondary, high-precision straightening step is performed post-drawing to ensure straightness (typically <0.30 mm/m).
Cut-to-Length: The material is automatically cut to the required length with high precision.
Surface Finishing: Polishing and/or burnishing operations are conducted to enhance surface finish (Ra <1.6 μm).
Finished Product Collection: Automatic stacking and bundling complete the full automation of the entire process workflow.
Uncoiling and Pre-straightening: The coiled raw material is unwound and preliminarily straightened to relieve internal stresses.
Continuous Drawing and Forming: Through a multi-die continuous drawing process, the material's cross-section is reduced while its length is elongated, achieving single-pass forming.
Precision Straightening: A secondary, high-precision straightening step is performed post-drawing to ensure straightness (typically <0.30 mm/m).
Cut-to-Length: The material is automatically cut to the required length with high precision.
Surface Finishing: Polishing and/or burnishing operations are conducted to enhance surface finish (Ra <1.6 μm).
Finished Product Collection: Automatic stacking and bundling complete the full automation of the entire process workflow.
OUR PRODUCTS
Best-selling Products
Coil To Bar Peeling&Straightening Line
Stainless steel wire rod is decoiled and pre-straightened, then peeled using a centerless lathe and cut to a precise length. Following a final precision straightening pass through a two-roll straightener, the resulting product is a high-precision stainless steel straight bar.
Peeling machine(centerless lathe)
The peeling machine (centerless lathe) unit is a product independently developed after comparing and contrasting the advantages of similar foreign products and combining them with the production characteristics of domestic enterprises, resulting in a simplified and optimized design.
Coil to coil production line
Coil to coil production line is a serial of the machines includes payoff & straightening machine, peeling machine, clamping mechanism, pre-bending device, recoiler machine etc. through above machines, the black coil rod will be processed to bright coil rod with good surface quality
Straightening machine BS Series
A straightening machine is a device used to straighten metal profiles, bars, tubes, and wires. The straightening machine uses straightening rollers to compress the material, altering its straightness. Generally, there are two rows of straightening rollers, with varying numbers of rollers. There are also two-roller straightening machines, which rely on the angle change of two rollers (with a concave, hyperbolic shape) to straighten materials of different diameters.
Multi-Roll Steel Pipe Straightening Machine
It is a mechanical device used to straighten the curvature and ovality of steel pipes. It is used to straighten pipes made of high alloy, corrosion-resistant, heat-resistant, heat-resistant steel and alloy, iron-nickel, nickel and titanium alloys , so as to reduce longitudinal non-straightness and cross-sectional non-roundness.
Horizontal and vertical straightening machine
Release the handwheel of the multi-roll horizontal and vertical straightening machine to allow the wire coil to pass through the straightening rollers. Tighten the handwheel to the empirically determined position, start the feeding device, and perform repeated straightening trials. Then feed the wire coil to the vertical straightening rollers, following the same procedure as for horizontal straightening. Finally, feed the wire coil to the peeling machine's feeding device.
